● Category:
● Brand Name: ZOOMLION
● Dimension (mm): 16150* 3000* 4000
● Operating Weight (kg): 55000
● Origin: China

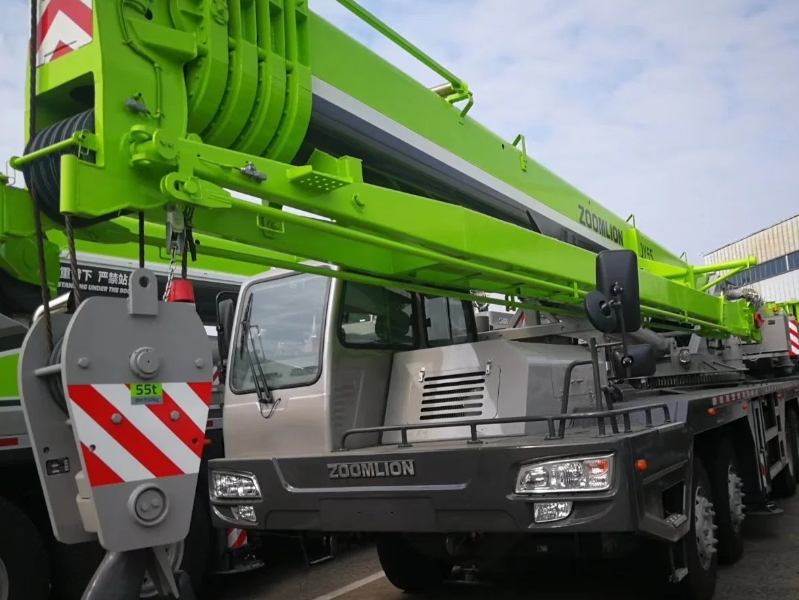

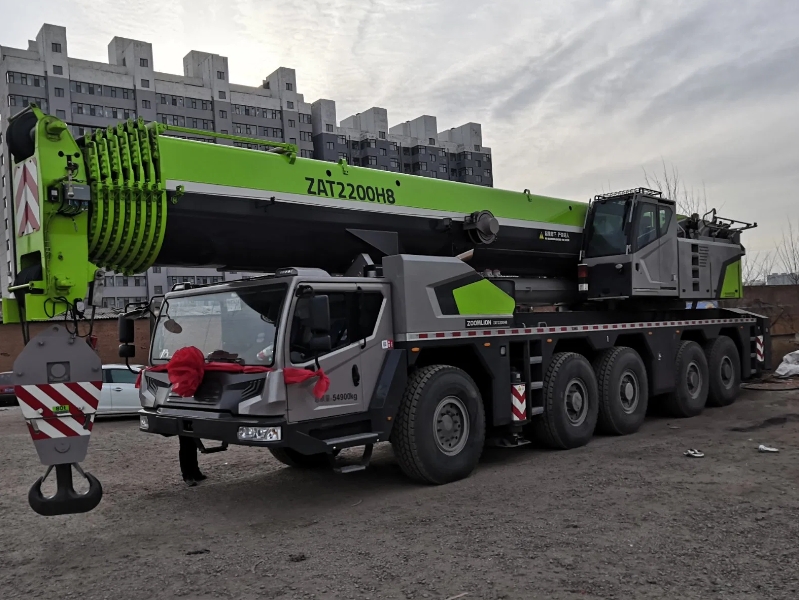

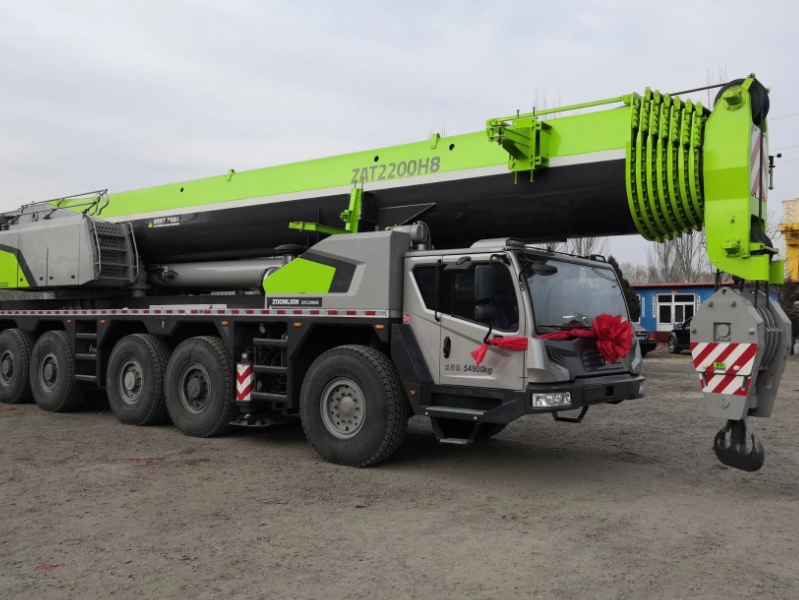

| Model | ZAT2200H853.2 |
| Max lifting weight | 220 ton |
| Max. Lifting moment | 660 t.m |
| 8-section boom | 13.5~80 m |
| Max. Lifting height of fixed jib | 100/(110) m |
| Engine brand | Weichai |
| Max. travel speed | 80 km/h |
| Min. turning diameter | 18.4 m |
| Min. ground clearance | 270 mm |
| Max. grade ability | 45% |
| Span | 9.2 * 8.3 m |
| Dead weight in driving | 55 ton |
| Dimension | 16150* 3000* 4000 mm |
