● Category:

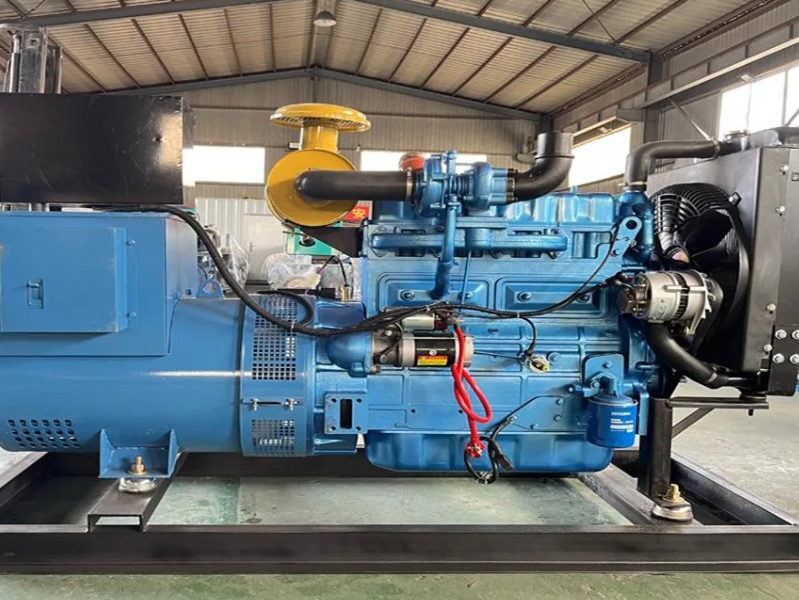

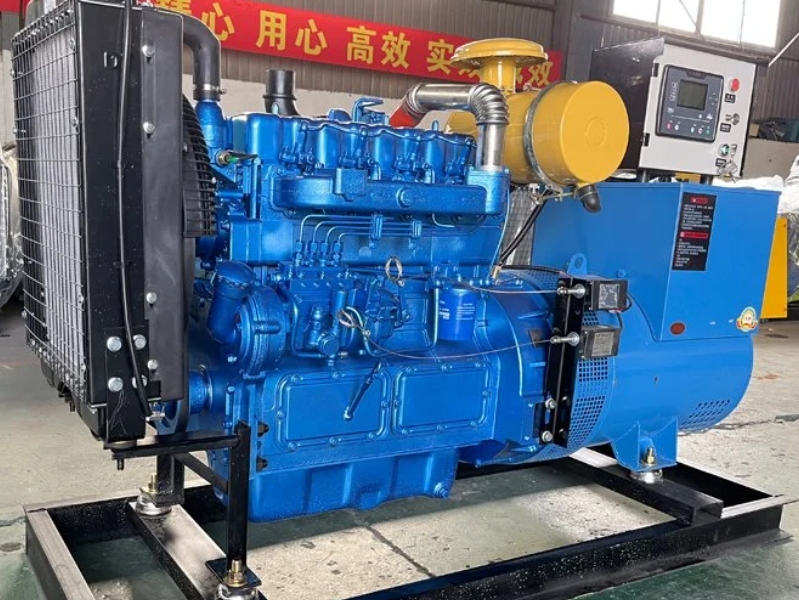

● Brand Name: WEICHAI
● Dimension (mm): 2200*900/1100*1250/1750
● Operating Weight (kg): 1500
● Origin: China
| GENERATOR SET MODEL | HY-30 | HY-40 | HY-50 | HY-75 | |
| Generator Output (kw) | 30 | 40 | 50 | 75 | |
| Voltage(V) | 400/230 | 400/230 | 400/230 | 400/230 | |
| Frequency(Hz) | 50 | 50 | 50 | 50 | |
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | |
| Phase | 3 | 3 | 3 | 3 | |
| DIESEL ENGINE MODEL | K4102D | K4102ZD | R4105ZD | R6105ZLD | |
| Engine Characters | water-cooled,inline,4 strokes,direct injection ,wet cylinder liner | ||||
| Constant output (kW / kVA) | 33 / 41.25 | 44 / 55 | 56 / 70 | 100 / 125 | |
| Standby Output (kW / kVA) | 36.3 / 45.375 | 48.4 / 60.5 | 61.6 / 77 | 110 / 137.5 | |
| Aspiration | Turbocharged | Turbocharged | Turbocharged | Turbocharged | |
| Bore(mm) X Stroke(mm) | 102X125 | 102X125 | 105X125 | 105X125 | |
| Displacement (Liters) | 3.5 | 3.5 | 4.33 | 6.49 | |
| Compression Ratio | 17:01 | 17:1 | 16:1 | 16:1 | |
| Machine Governor | ≤5% | ≤5% | ≤5% | ≤5% | |
| Exhaust Temperature(ºC) | ≤540 | ≤540 | ≤600 | ≤600 | |
| Lube Capacity (L) | 13 | 13 | 12 | 16 | |
| Cooling System Voluem(L) | 11 | 11 | 16 | 26 | |
| Combustion Air Flow | 2.7m3/min | 2.7m3/min | 5.11m3/min | 6.35m3/min | |
| Exhaust Gas Flow | 7.95m3/min | 7.95m3/min | 13.83m3/min | 17.1m3/min | |
| Rating Fuel Consumption (g/kw.h) | 224 | 224 | 231 | 224 | |
| ALTERNATOR | |||||
| Rated power (kw) | 30 | 40 | 50 | 75 | |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 | |
| Rated frequency(Hz) | 50 | 50 | 50 | 50 | |
| Excitation Type | Brushless | Brushless | Brushless | Brushless | |
| Insulation Class | H | H | H | H | |
| Power Factor | 0.8(lag) | 0.8(lag) | 0.8(lag) | 0.8(lag) | |
| connection Type | 3 phase-4 wire | 3 phase-4 wire | 3 phase-4 wire | 3 phase-4 wire | |
| Rated Speed(rpm) | 1500 | 1500 | 1500 | 1500 | |
| Protection | IP22 | IP22 | IP22 | IP22 | |
| Approximate Length | 2200mm | 2200mm | 2200mm | 2800mm | |
| Approximate Width | 900mm | 900mm | 1000mm | 1100mm | |
| Approximate Height | 1250mm | 1250mm | 1300mm | 1750mm | |
