Item

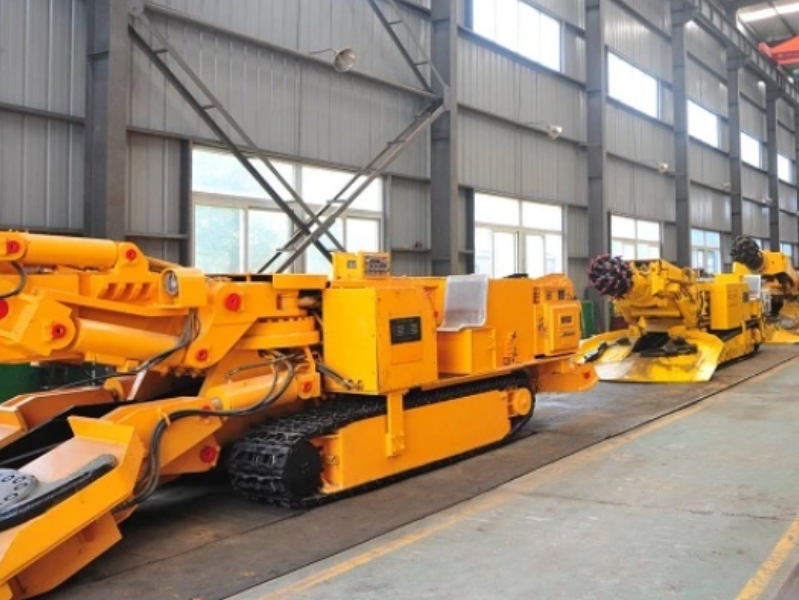

EBZ260

Overall weight

85000 kg

dinting undercut

275 mm

Ground clearance of machine

260 mm

Height of Range of positioning cutting

5030 mm

Width of Range of positioning cutting

5950 mm

Area of Range of positioning cutting

30 m²

Gantry height

400 mm

Compressure strength of coal petrography to be cut

≤110/90 Mpa

Climbing capacity

±18°

Travelling speed

7 m/min

Min. turning radius

-

Grounding pressure

0.165 Mpa

Gross power

447 kW

Power of Cutting motor

260/200 kW

Power of pumping stations motor

132 kW

Supply voltage

AC1140V

Frequency of supply

50Hz

Rotation speed of cutting head

54/27 r/min

Loading capacity

Star wheel type/4.3 m³/min

Crawler width

650 mm

Out. Width of crawlers

2700 mm

Tensioning style

Cylinder tensioning and snap-gauge locking

Water pressure of outside spraying

≥1.5 MPa

Water pressure of inside spraying

≥3 MPa

Max. non-removable parts size

3.755×1.5×1.47 m

Max. non-removable parts mass

8700 kg
