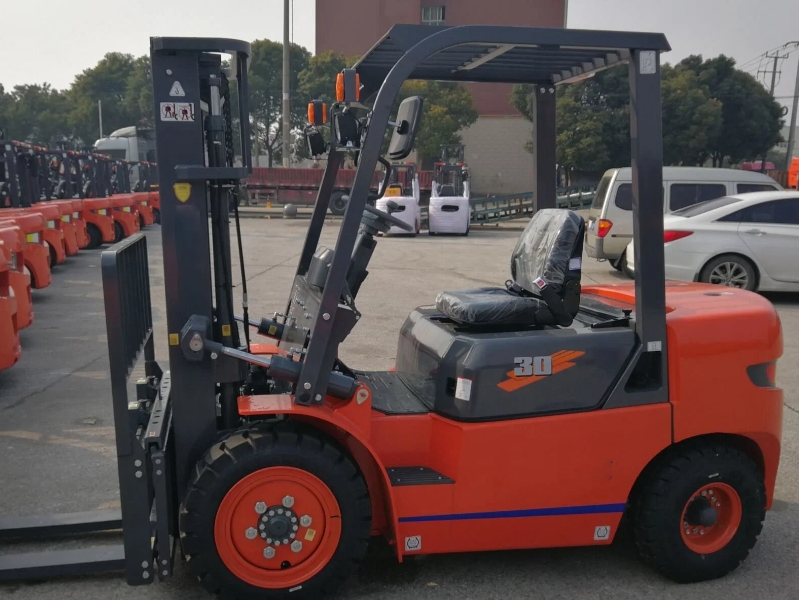

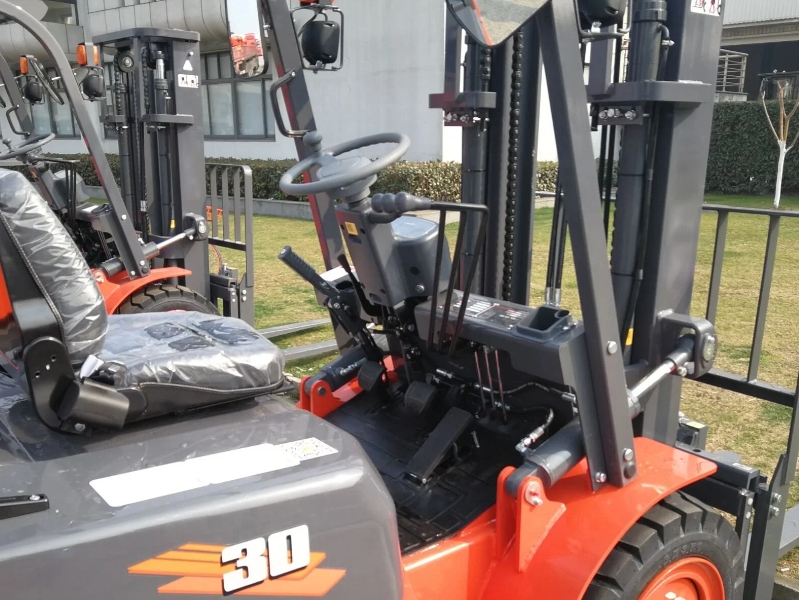

LONKING

● Category:

● Brand Name: LONKING

● Dimension (mm): 2930*1800*2452

● Operating Weight (kg): 4650

● Origin: China

Specifications
Powertype Diesel
Ratedcapacity(Kg) 3500
JLoadcentre(mm) 500
h1STDMaxliftingheight(mm) 3000
h3Freeliftingheight(mm) 170
L5*W*TSTDForksize(mm) 1070×125×50
Masttiltangle(deg) 6/12
L3Frontoverhang(mm) 498
L4Rearoverhang(mm) 600
R1Min.turningradius(mm) 2490
Min.width for pallets 1,000×1,200 crossways (L×W)(mm) 4200
Speed(load/unload)
Max.travelingspeed(km/h) 20
Max,liftingspeed(mm/s)(load/unload) 380/400
Max.gradient(%) 20
STD Dead weight(kg) 4650
S/PTread(frnt/rear)(mm) 1000/980
L2Axledistance(mm) 1700
Min.groundclearance
m2Mast(mm) 130
m1Frame(mm) 160
