● Category:
● Brand Name: CIMC
● Dimension (mm): 12250, 2490,1490/1520
● Operating Weight (kg): 7490
● Origin: China

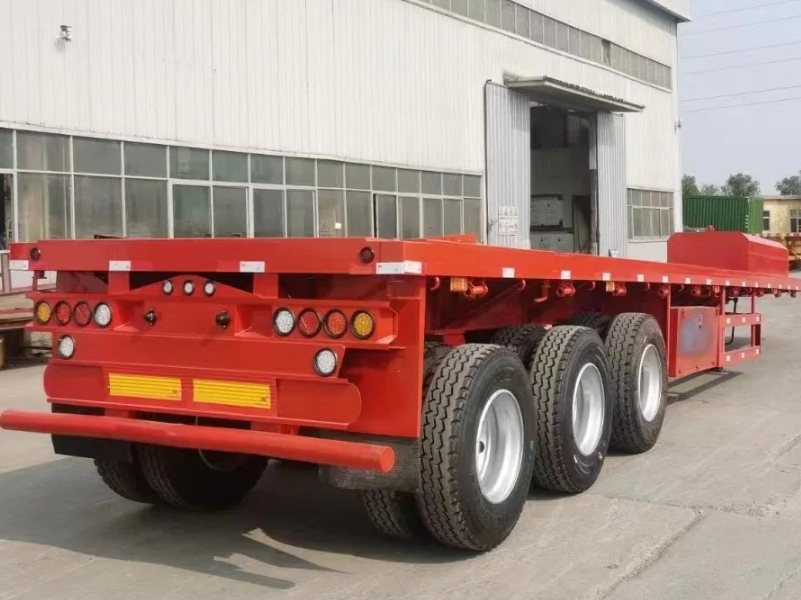

| Detailed instructions | 3 axles 40FT Flatbed semi trailer |
| G.W./kgs | 35,490 |
| Tare Weight/kgs | 7,490 |
| Rated load/kgs | 28000 |
| Overall Size(L*W*H/mm) | 12250, 2490,1490/1520 |
| Axle base/mm | 7000+1310+1310 |
| Tire Size | 11.00R20;11.00-20;10.00-20 |
| Wheel base/mm | 1,830 |
| Leaf spring/pcs | 7/7/7;8/8/8 |
| Front/rear suspension(mm) | 450/2180 |
| Saddle bearing capacity/kgs | 11,700 |
| Rear axle bearing capacity/kgs | 23,790 |
