● Category:
● Brand Name: CHANGLIN
● Dimension (mm): 8390×2800× 3450
● Operating Weight (kg): 16700
● Origin:

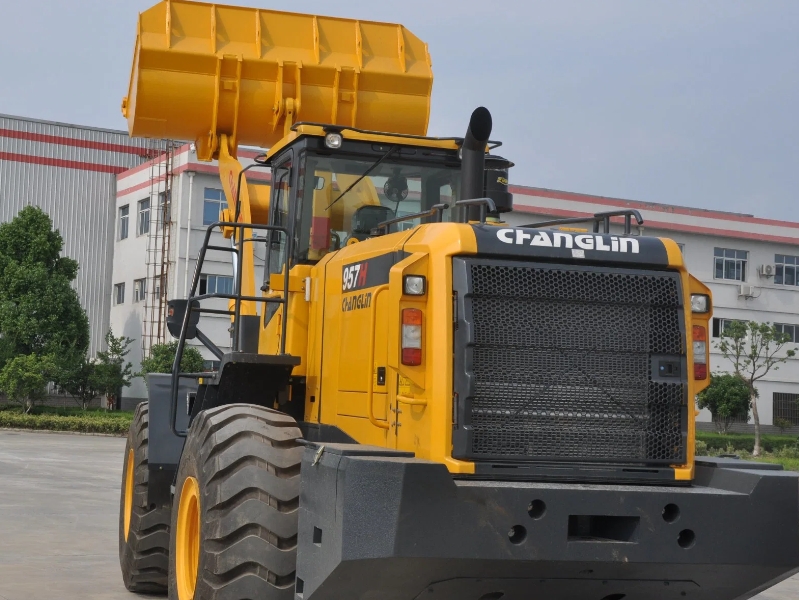

| Model | 957H |
| Rated load(kg) | 5000 |
| Bucket capacity(m³) | 3 |
| Operating weight(kg) | 16700 |
| Lifting time of the bucket(s) | 5.6 |
| Maximum climbing gradient(°) | 30 |
| Steering angle(°) | ±38 |
| Maxim running speed(km/h) | 32 |
| Min.steering radius(mm) | 6192 |
| Max.drawing force(kN) | 160 |
| Dumping clearance(mm) | 3136 |
| Dumping reach(mm) | 1121 |
| Tyre size | 23.5-25-16PR(L-3) |
| Overall dimensions | |
| Length(mm) | 8390 |
| Width(mm) | 2800 |
| Height(mm) | 3450 |
| Wheel-base(mm) | 3300 |
| Engine Model | SHANGCHAI SC11CB220G2B1 CUMMINS 6CTAA 9.3 |
| Rated power(kW ) | 162 |
| The speed in rated power(r/min) | 2200 |
