● Category:

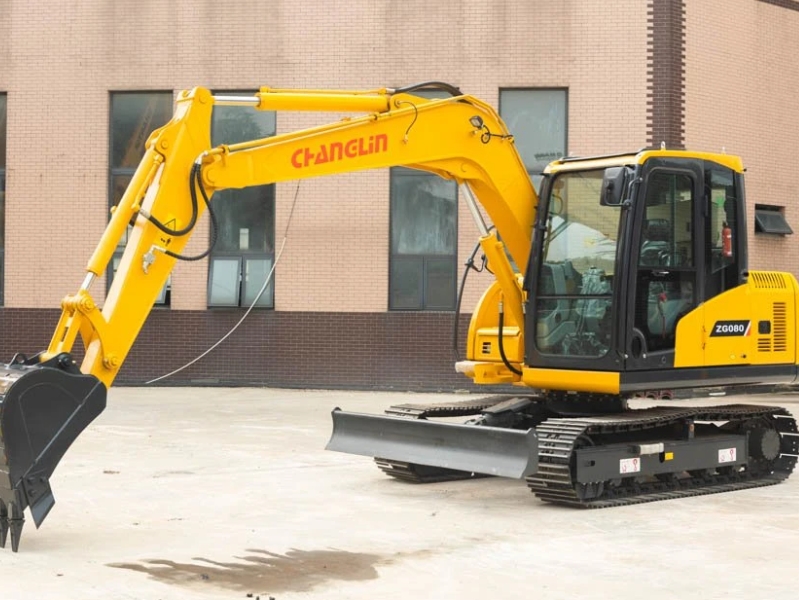

● Brand Name: CHANGLIN
● Dimension (mm): 6240 * 1755* 2660
● Operating Weight (kg): 7650
● Origin: China
| ITEM | ZG080S | ||
| Small Excavator Dimensions | Operating weight | Kg | 7650 |
| Rated bucket capacity | m3 | 0.32 | |
| Overall length | mm | 6240 | |
| Overall width | mm | 2250 | |
| Overall height | mm | 2680 | |
| Trunable width | mm | 2230 | |
| Cabin height | mm | 2680 | |
| Groundclearance of counterweight | mm | 825 | |
| Engine cover height | mm | 1755 | |
| Min. ground clearance | mm | 385 | |
| Tail length | mm | 1880 | |
| Turning radius of turnable | mm | 1880 | |
| Chassis length | mm | 2820 | |
| Chassis width | mm | 2250 | |
| Track shoe gauge | mm | 1800 | |

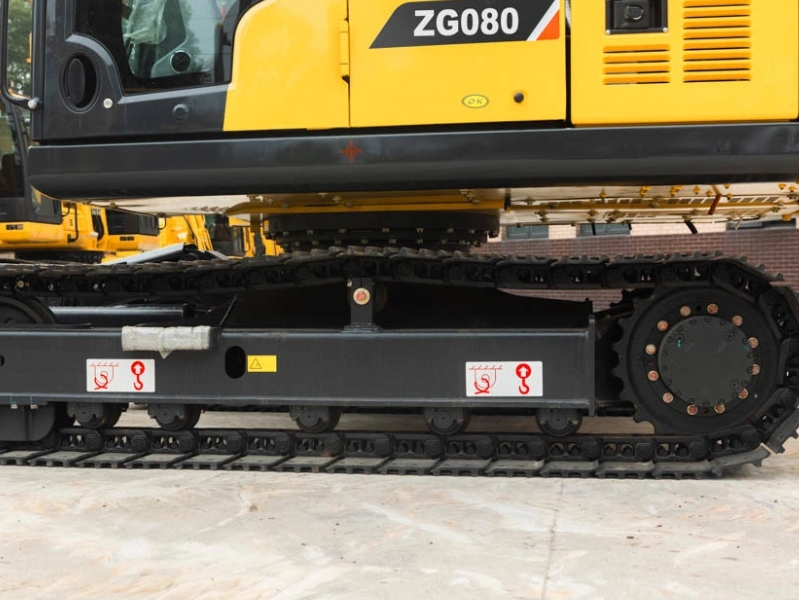

| Standard track shoe width | mm | 450 | |
| Performance | Max. traction | KN | 86.5 |
| Travelling speed (H/L) | Km/hr | 4.8/2.9 | |
| Swing speed | rpm | 11 | |
| Gradeability | Degree(%) | 70 | |
| Working Range |
Maximum digging radius | mm | 6360 |
| Ground maximum digging radius | mm | 6205 | |
| Maximum digging depth | mm | 4120 | |
| Ground maximum digging depth | mm | ||
| Maximum vertical digging depth | mm | 3150 | |
| Maximum digging height | mm | 6945 | |
| Maximum dumping height | mm | 4895 | |
| Min. front turning radius | mm | 2040 | |
| Bucket digging force | kN | 66 | |
| Stick digging force | kN | 44 | |
| Engine | Model | Kubota V3307T WEICHAI WP3 | |
| Type | 4-cylinder in-line, four-stroke turbocharger | ||
| Emission | Tier III | ||
| Displacement | L | 3.3/2.97 L | |
| Rated power | 48.9kw@2000rpm/ 48kw@2200rpm | ||
| Max. torque | N.m | 263.1N.m@1400rpm 265N.m@1400-1700rpm | |
