● Category:

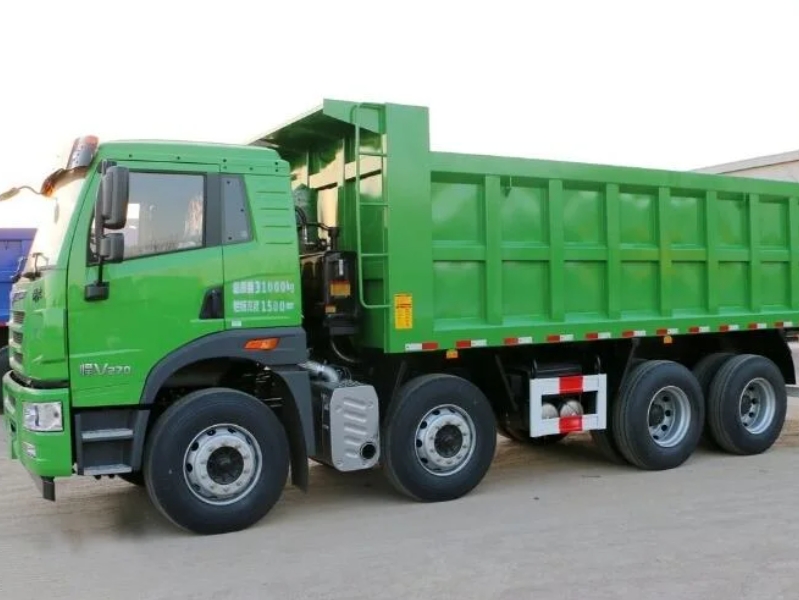

● Brand Name: Dump Truck
● Dimension (mm): 10460×2500×3250
● Operating Weight (kg): 15450
● Origin: China
| GVW 31000kg Driving Type 8x4 | ||
| Model | CLW3310 | |
| Cab | Han V cab | |
| Engine(Hp) | 270 | |
| Power(Kw) | 199 | |
| Wheelbase | 1900+3800+1350 | |
| Front/Rear Suspension | 1964/1847 | |
| Steering | Power steering | |
| Approach/departure angle | 21/42 | |
| Wheels & tire | 11.00R20 | |
| Tire number | 12+1 | |
| Body Dimensions(mm) | 7600×2300×1500 | |
| Cubage (m3) | 26/30 | |
| Steel thickness | Side 6 ,Bottom 8 | |
| RHD or LHD | optional | |
| Overall Dimensions(mm) | 10460×2500×3250 | |
| Curb weight (Kg) | 15450 | |
| Engine | Model | WP10.270 |
| Horsepower | 270 | |
| Maximum output Kw | 199 | |
| Type | 6cylinders, in-line,4-stroke, turbo inter-cooling, diesel engine | |
| Displacement | 9.726L | |
| Weichai brand | ||
| Driving passenger | 2,3 | |
| Transmission | 10 forwards,2 reverse | |
| Front Axle | 7.5T | |
| Rear Axle | 13Tx2 | |
| Brake System | air brake | |
| exhaust brake | ||
| Color and LOGO | customized | |
| Electric system | 24V | |
