Product classification
Product classification
● Category:
● Brand Name: Tractor Truck
● Dimension (mm): 5800X2300X1500
● Operating Weight (kg): 9500
● Origin: China
| MODEL | SX42584V324 | |
| Driver position | Left Hand | |
| Cab | Medium length flat top | |
| Driving type | 6*4 | |
| Wheelbase | 3175+1400 | |
| Max. Speed(km/h) | 80km/h | |

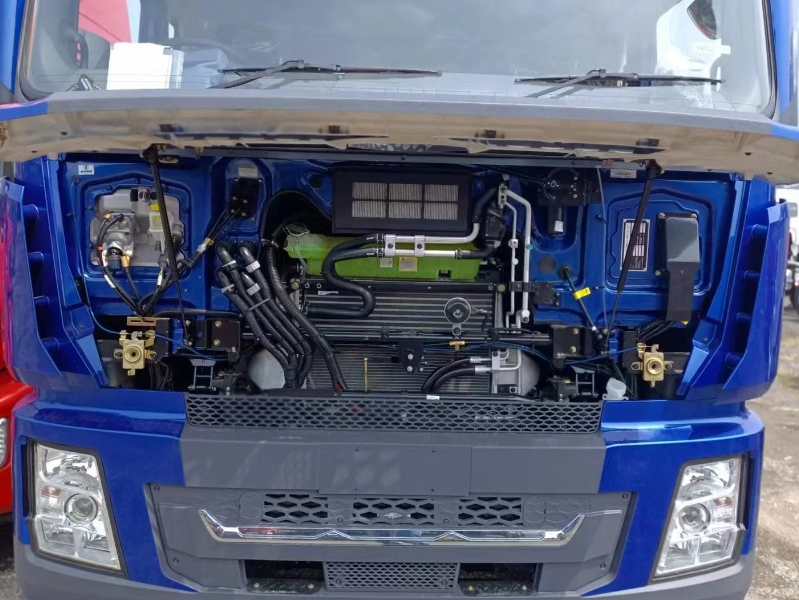

| Engine | Brand | WEICHAI |
| Model | WP12.430E50 | |
| Emission Standard | EURO V | |
| Rated output power(PS) | 430HP/ 316KW | |
| Displacement (L) |
11.596L | |
| Transmission | Brand | FAST |
| Model | 12JSD200T-B | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 13T MAN double reduction driving axle Speed ratio 4.266 | |
| Clutch | ¢430 diaphragm clutch¢430 | |
| Frame | 850×300(8+7) | |
| Suspension | multiple leaf springs front and rear/four main spring + four bolts | |
| Fuel tank | 400LAluminum alloy | |
| Wheels and tires | 12.00R20(12+1) | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
