● Category:

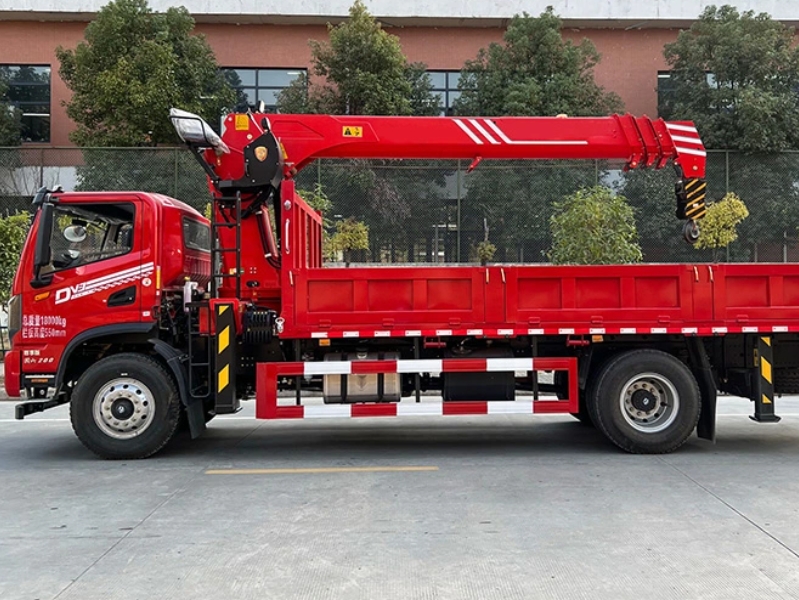

● Brand Name: Truck Mounted Crane
● Dimension (mm): 12000x2550x3950
● Operating Weight (kg): 18500
● Origin: China
| Vehicle Brand | Dong Feng |
| Curb Weight(kg) | 18500 |
| Engine Power(kw) | 294 |
| Gearbox | Manual 12-Speed Transmission |
| Vehicle Size (mm) | 12000x2550x3950 |
| Container Size (mm) | 8500x2400x600 |
| Number of Axles | 4 |
| Wheelbase (mm) | 2100+4575+1400 |
| Number of Tires | 12 |
| Tire Size | 11.00 R20 |
| Front/Rear Axle | 6.5 Tons /13 Tons |
| Brake System | Automatically Air-Cut Brake |
| Crane Parameters | |
| Lifting Weight of Crane | 12 to 16 Tons |
| Boom Type | Straight Arm Crane |
| Maximum Working Radius (m) | 19.6 |
| Maximum Lifting Height (m) | 21 |
| Number of Boom Segments | 4 or 5 |
| Outrigger Span (mm) | 2484~8404 |
| Mode of Operation | Manual/Remote Control |
| Rotation Angle | 360° |
