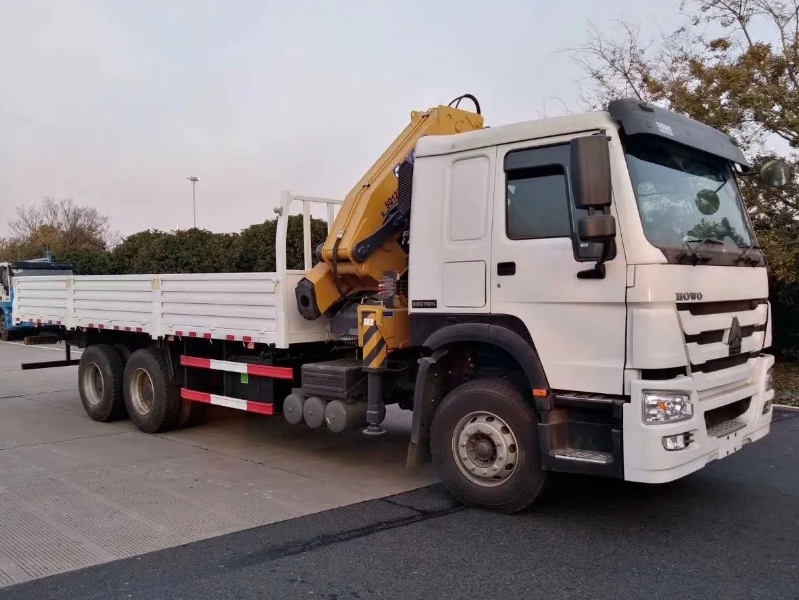

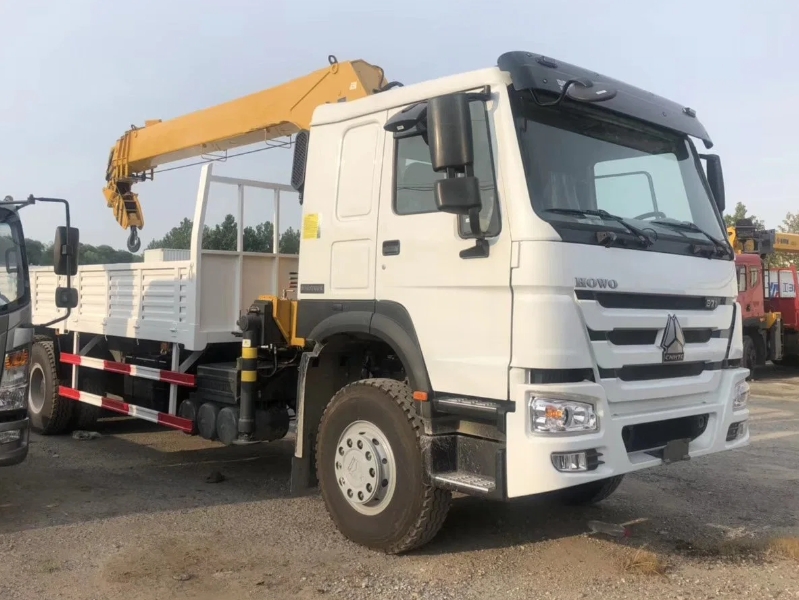

Truck Mounted Crane

● Category:

● Brand Name: Truck Mounted Crane

● Dimension (mm): 11000×2500×3900

● Operating Weight (kg): 16100

● Origin: China

Specifications
 Cabin Driving type 6x4 LHD
HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 11000×2500×3900
Carriage Size (L x W x H) mm 7000×2300×600
Wheel base (mm) 5225+1350
Wheel track (front/rear) (mm) 2022/1830
Weight in KGS Tare Weight 16100
payload 25000
Front axles loading capacity 1x9000
Rear axles loading capacity 2x16000
Max. driving speed(km/h) 90
Engine Brand Sinotruck
Model WD615.47
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371
Emission standard Euro 2
Gearbox HW19710 10 Forwards gear & 2 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430 mm
Steering Gear Z F 8118,power steering, hydraulic steering with power assistance
Tire
12R22.5 tubeless tyre 11 pcs including one spare tire
Crane specifications Brand : Chinese brand or Euro brand
Type: Telescopic
Max lift capacity: 10000 kg
Max working radius 15.8 m, Max lifting height : 17.8 m
