● Category:

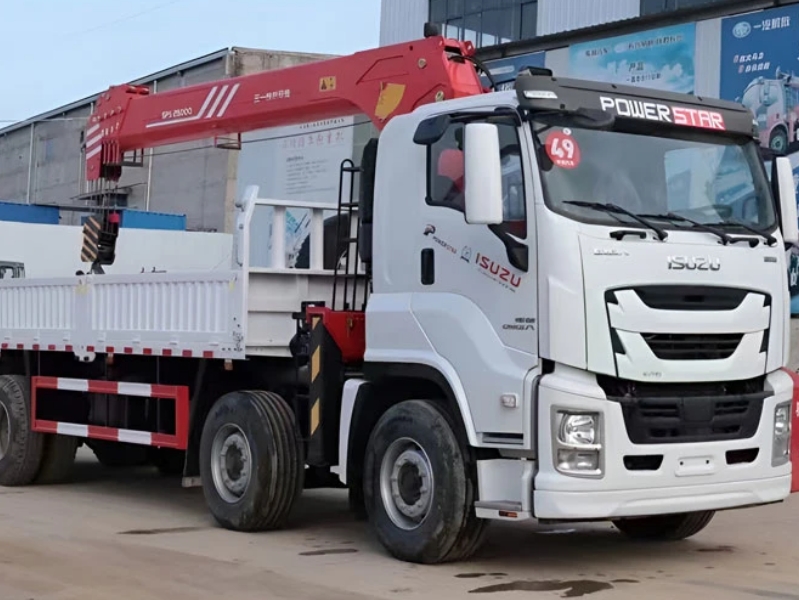

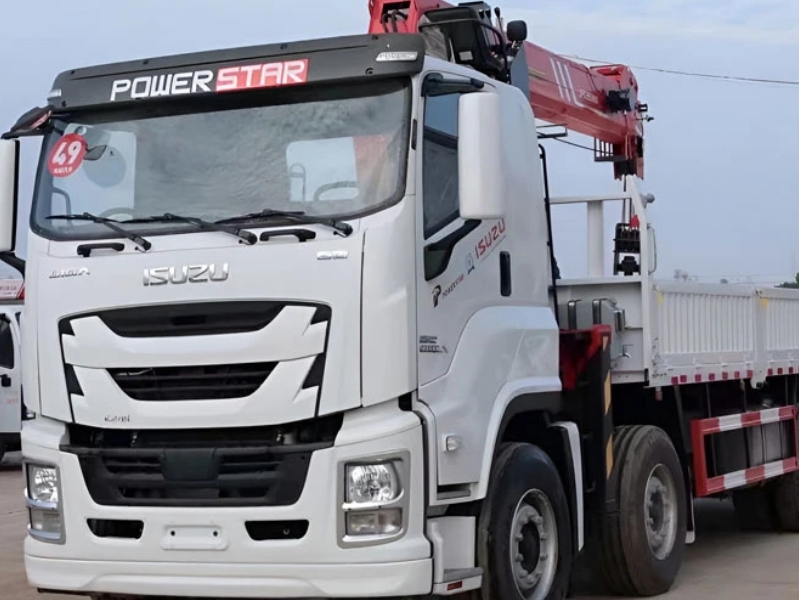

● Brand Name: Truck Mounted Crane
● Dimension (mm): 12000×2550×3990
● Operating Weight (kg): 31000
● Origin: China
| Drive Type | LeftHand Drive/RightHand Drive |
| Vehicle Size(mm) | 12000×2550×3990 |
| Net Weight(kg) | 31000 |
| Engine Model | 6UZ1-TCG40 |
| Emission Standard | Euro3/Euro4/Euro5/Euro6 |
| Wheelbase | 1850+4615+1300mm |
| Transmission | 9JS150TA-B |
| Front/Rear Axle | 7T/18T |
| Frame | 300mm straight through triple |
| Tyre Size | 11.00R20 18PR |
| Container Size | 8400 × 2450 × 550mm |
| Other | With power steering, power take-off, air brake, lower protection. |
| Working angle | Full hydraulic, 360 ° Full rotation |
| Maximum lifting height | 21.5m |
| Maximum lifting weight | 10-12T |
| Quantity of telescopic arm | 5-section |
| Working radius | 19.5m |
