Product classification
Product classification
● Category:

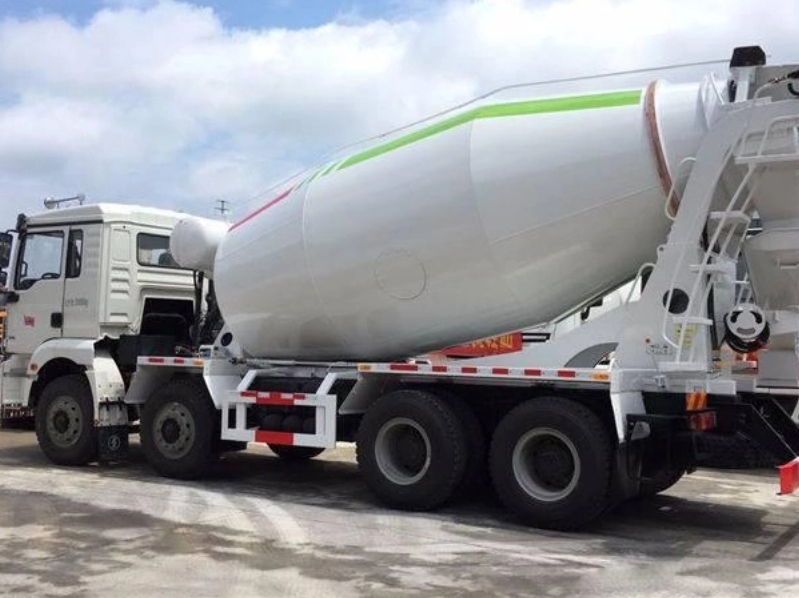

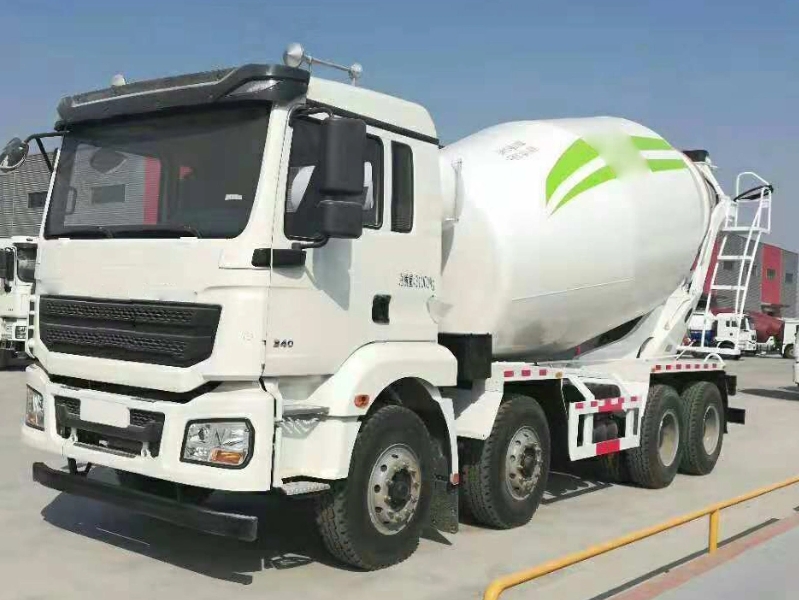

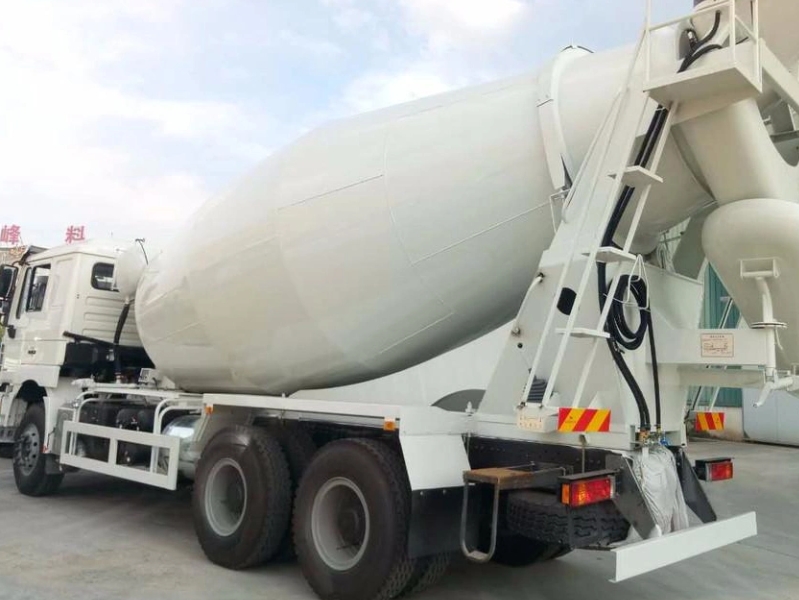

● Brand Name: Concrete Mixer Truck
● Dimension (mm): 9130*2500*3900
● Operating Weight (kg): 25000
● Origin: China
| Model | SX5255GJBJR384C | |
| Max. running speed(km/h) | 77 | |
| Drive System | 6× 4 | |
| Kerb weight(kg) | 12370 | |
| Total mass(kg) | 25000 | |
| Overall dimensions (mm) | Length | 9130 |
| Width | 2500 | |
| Height | 3900 | |
| Capability (CBM) | 9 | |
| Tank material | Q345/520JJ | |
| Wheel base (mm) | 3775+1400 | |
| Engine | ISME345 30+PTO, Engine Euro 3 | |
| Rated output horsepower | 345 hp | |
| Cab | F3000 lengthened Cabin with A/C | |
| Gearbox | 10JSD180 FAST Gearbox | |
| Reducer | TOPUIONP68 Italy | |
| Oil Pump | ARKPV089 pump Italy | |
| Motor | ARKMF089 motor Italy | |
| Feeding Speed (m3/min) | ≥3 | |
| Discharge Rate (m3/min) | ≥2.5 | |
| Discharge Residual Rate (%) | ≤1 | |
| Water Supply System | Air pressure water supply | |
| Water Tank Volume (L) | 450 | |
| Axle | 16 Ton double reduction-gear axle, ratio 5.262 | |
| Tyre(RADIAL TYRE) | 12.00R20 | |
