● Category:
● Brand Name: Cargo Truck
● Dimension (mm): 6800*2450*600
● Operating Weight (kg): 30000
● Origin: China
| Loading Weight(kg) | 30,000 | |||
| Fuel tanker capacity(L) | 400 | |||
| Clutch | Single-plate dry clutch Φ430mm | |||
| Engine Model |
Fuel type | Diesel | ||
| Horse Power, max(kw/rpm) | 371HP | |||
| Emission | EURO II | |||
| Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection | |||
| Transmission | Model | HW19710, 10 forwards and 2 reverse | ||
| Steering system |
Model | ZF8118 hydraulic steering with power assistance | ||
| Front axle | HF9 , Steering with double T-cross section beam | |||
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | |||
| Color | Optional (White ,Red ,yellow ) | |||
| Tyre | 12.00R20 radial tires, 10+1pcs | |||
| Electrical system |
Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||

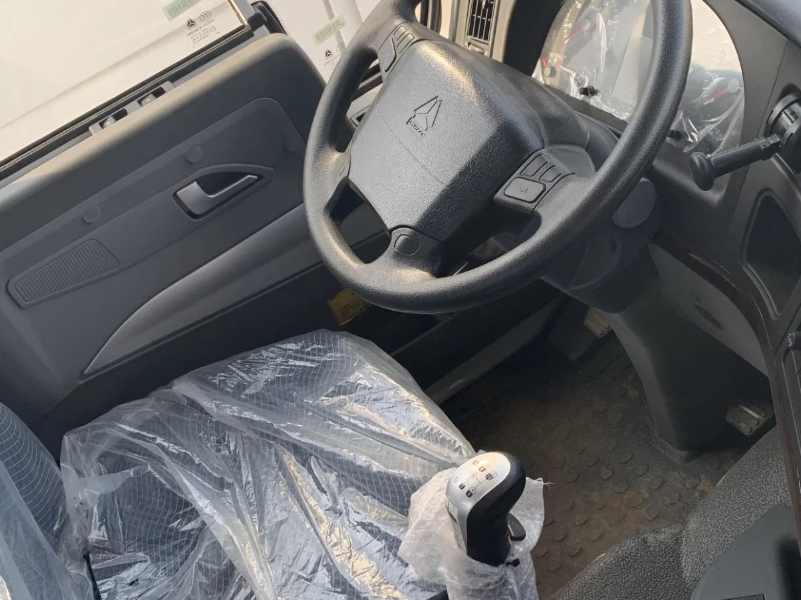

| Cab | HOWO76 cab, single sleeper with air conditioner | |||
