Product classification
Product classification
● Category:

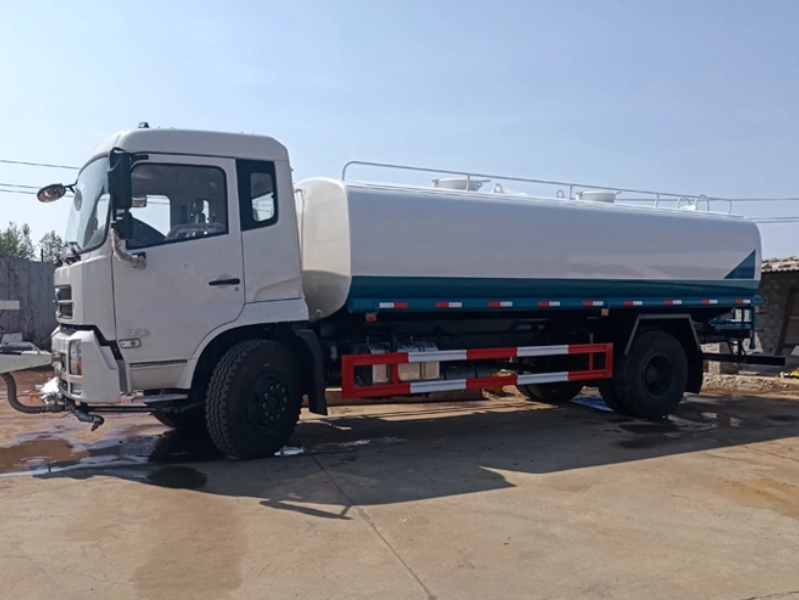

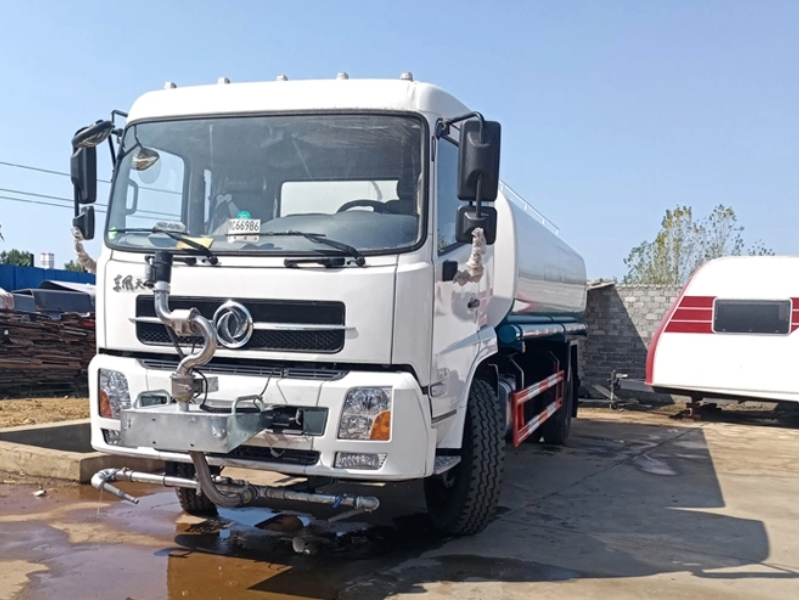

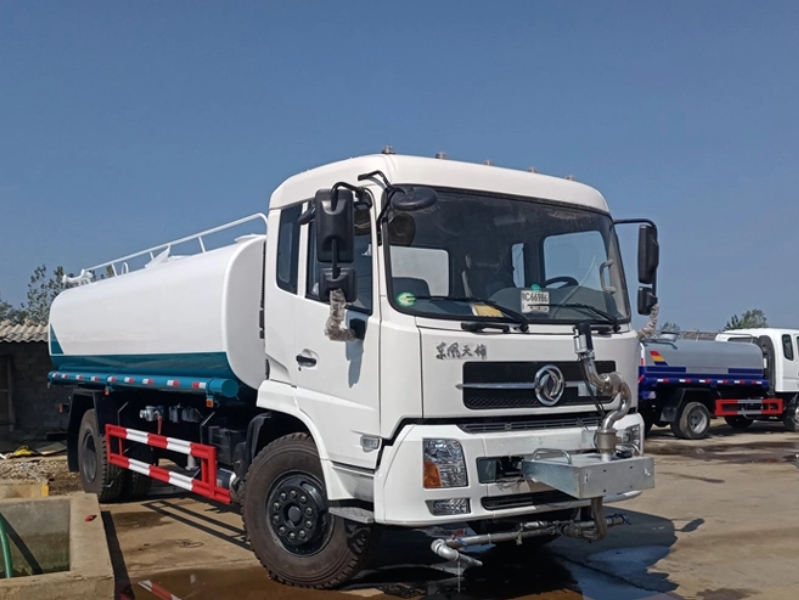

● Brand Name: Water Tank Truck
● Dimension (mm): 11200,11033×2500×3200
● Operating Weight (kg): 15305
● Origin: China
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 11200,11033×2500×3200 |
| Wheel base (mm) | 1860+4800,1860+5600 | |
| Overhang (front/rear) (mm) | 1532/3008 | |
| Axle load (kg) | 6750/11500 | |
| Approach/Departure angle(°) | 12/8 | |
| Weight in KGS | Curb Weight | 15305 |
| GVW. | 25000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | ISB210-50 |
| Type | 6-cylinder in-line with water cooling | |
| Horse Power(HP) | 210HP | |
| Emission standard | Euro | |
| Gearbox | 8 forwards & 1 reverse | |
| Steering Gear | Power steering | |
| Tire | 11.00R20,8pcs + 1 spare tire | |
| UPPER | ||
| Platform Organ | Tank Volume | 15CBM |
| Pump model | 60/90 | |
| Tank material | Carbon steel Q235 | |
