Product classification
Product classification
● Category:

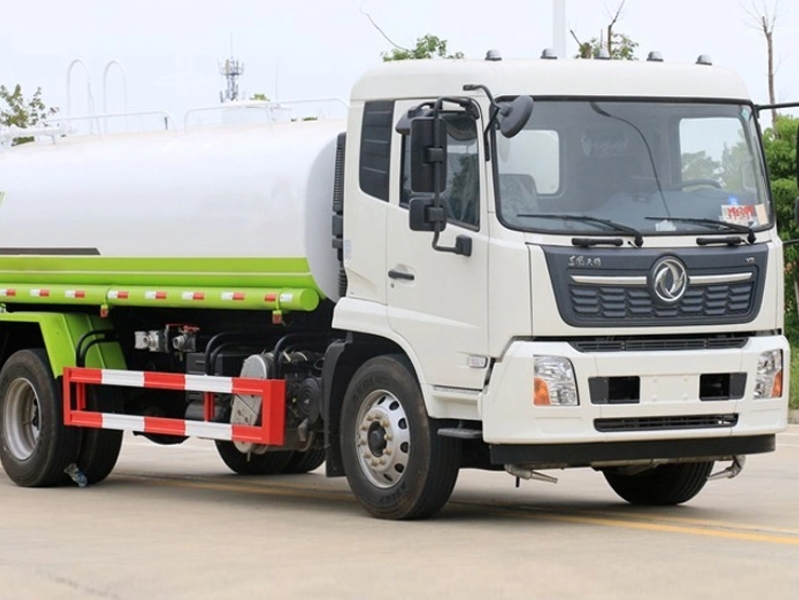

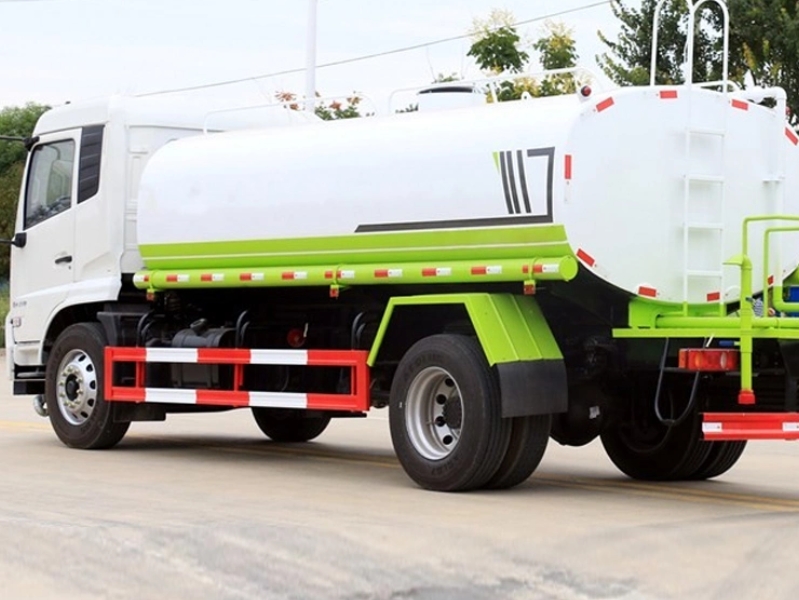

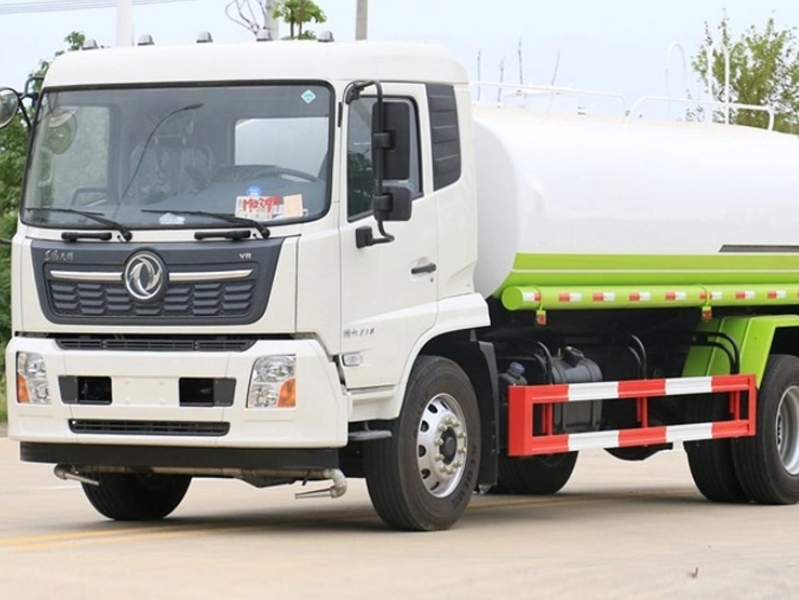

● Brand Name: Water Tank Truck
● Dimension (mm): 8000*2500*3200
● Operating Weight (kg): 15800
● Origin: China
| Overall dimension | 8000*2500*3200mm | ||
| GVW | 15800kg | ||
| Curb weight | 7805kg | ||
| Chassis brand | DONGFENG KR | ||
| Traction type | 4*2, left /right hand drive | ||
| Chassis Description | |||
| Chassis model | DFL1180B 1 | ||
| Cab | KR one and a half row cab,forward control type,all welded steel cab of tilt type,mechanical ca biting,rear mechanical cab suspension,adjustable driver seat,manual windows,manual lock,airconditioner. | ||
| Wheelbase | 3800mm | ||
| Tire specification | 10.00-20 | ||
| Tire quantity | 6+ 1 units | ||
| Engine | Engine mode | B17033 | |
| Emission leve | Euro 2 | ||
| Displacement/output | 5900ml/271w | ||
| Horsepower | 170hp | ||
| Gearbox | Type | DF6S900 | |
| Number of gears | 6 forward gears&1 reverse | ||
| Brake system | Full air brake system,split pneumatic circuit;parking spring brake acting on rear axles,exhaust brake | ||
| Axle | Front | 4.5T-Elliot type,I beam section | |
| Rear | 9T-Single reduction | ||
| Suspension | Front | 7-Leaf spring with shock absorber | |
| Rear | 9+6-Leaf spring | ||
| Fuel tanker | Type | Steel fuel tank,with lockable cap | |
| Capacity | 160L | ||
| Up-part description | |||
| Tanker | Capacity | 10cbm | |
| Material | Carbon steel | ||
| Thickness | 4mm | ||
| Standard configuration |

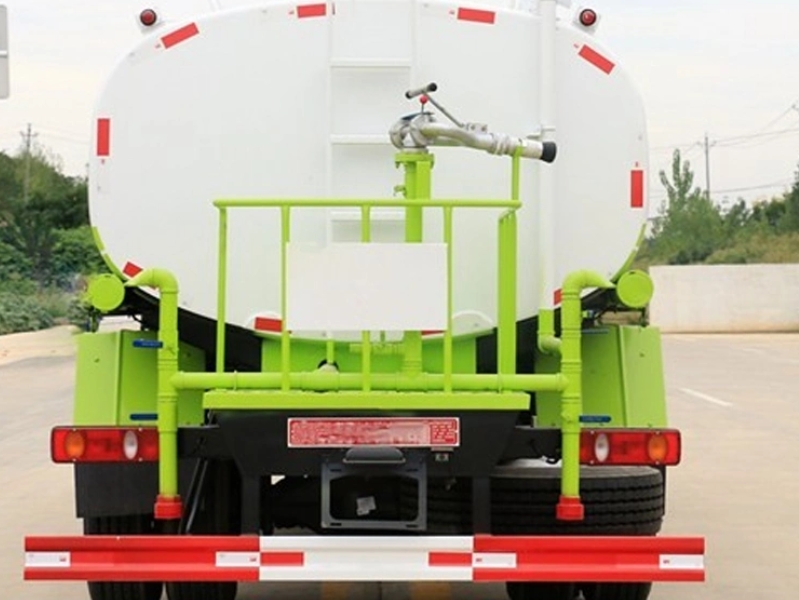

Equipped with front(rear,side) sprinkler(sprinkling width>14m) Equipped with rear working platform with water cannon(range>28m) Equipped with Wei Long pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze | ||
| Optional configuration |
Snow shovel foggy gun,front spray,rear sprinkler | ||
