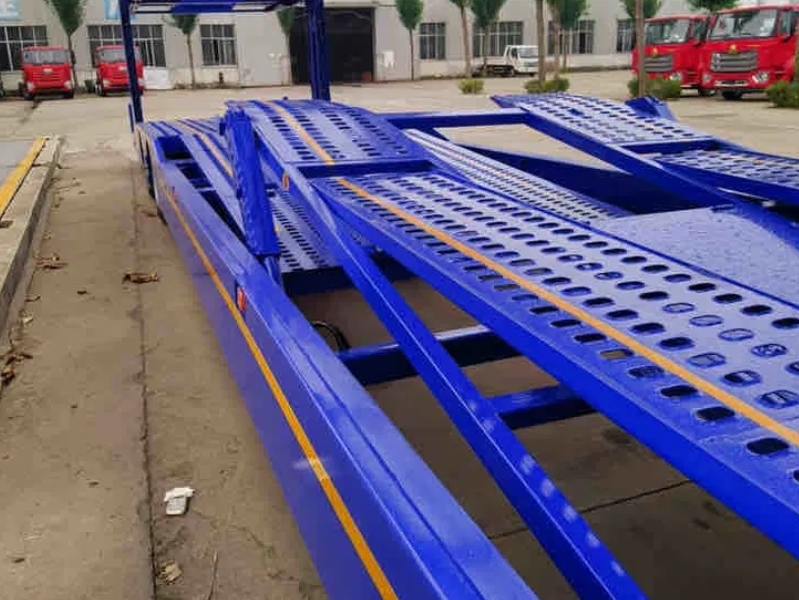

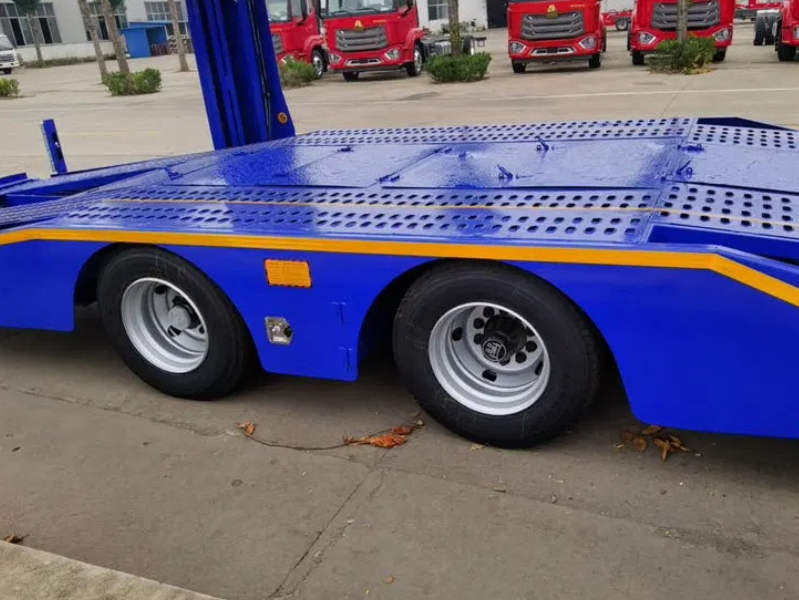

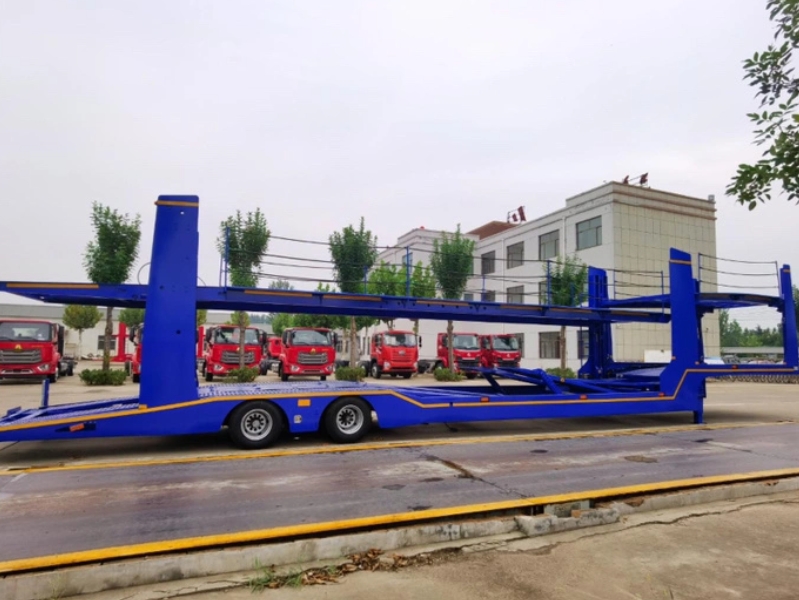

Cars Transportation Hydraulic Loading Truck Semi Trailer

Size

Axle No

Rating Capacity

Tire Qty

Tire Model

6 Cars Loading

2 Axles

50Tons

8 sets

825R20

10 Cars Loading

3 Axles

60-70Tons

12sets

10.00R20

More than 10 cars

4 Axles

80Tons

16sets

11.00R20

Rear tread(mm)

1840/1840

Outside Dimension L×W×H

15800-21000x2400x3000 mm

Main Frame

Q345B manganese plates, automatic submerged arc welded

Floor

Steel Sheet 3mm thickness or diamond plate

Suspension

Steel leaf spring suspension system

Rated load

30-50 T

Pin Size

2' and 3.5' inter-changeable Pin

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Braking System

2-Line compressed air brake system on all wheels with additional parking brake.

Brake Air Chamber

Automatic Air Chambers

Electrical System

1. Voltage: 24v   2. Receptacle: 7 ways(7 wire harness)

Accessory

One tooling box with a set of standard trailer tool

Landing gear

Capacity of 28ton,factory brand

Lights System

LED electrical system to international standards includes taillights, sidelights and direction indicators.

Loading Capacity

Two floors,
