Product classification
Product classification
● Category:
● Brand Name: Forklift
● Dimension (mm): 4195*1380*2175
● Operating Weight (kg): 5300
● Origin: China

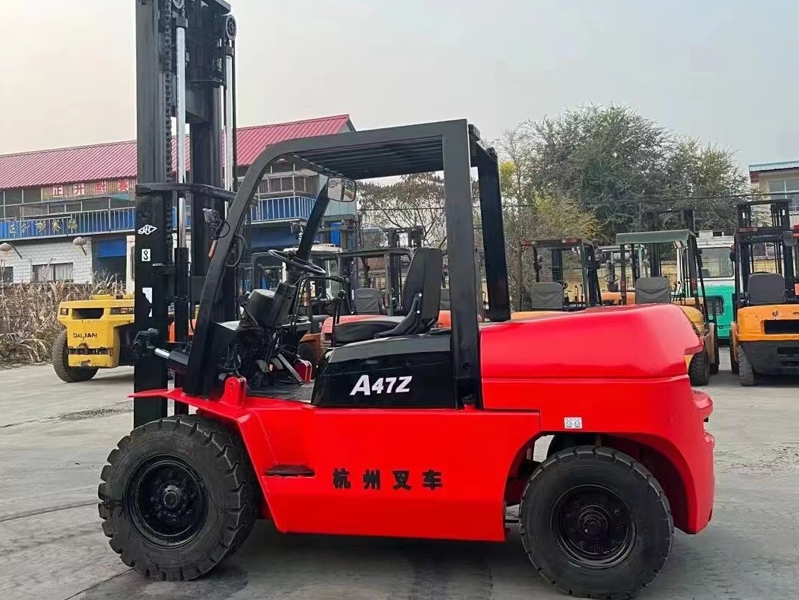

| model | 47Z | |
| Power type | diesel | |
| load capacity | 4700kg | |
| Load centre distance | 500mm | |
| lifting height | 3000mm | |
| Mast tilt angle | front/rear | 6/12Deg |
| min turning radius | 2680mm | |
| min ground clearance | 135mm | |
| Overhead guard height | 2120mm | |
| front overhang distance | 495mm | |
| Max driving speed | load | 22km/h |
| Max lifting speed | load | 330mm/s |
| max drawbar pull | load | 18.5KN |
| Max climbing capacity | 20% | |
| length | without fork | 2975mm |
| width | 1380mm | |
| Max lifting height of fork (with stopper shelf) | 4250mm | |
| Landing height of the gantry | 2175mm | |
| tyre | front | 300-15-18PR |
| rear | 700-12-10PR | |
| wheel base | 1960mm | |
| wheel track | front/rear | 1000/970mm |
| weight | without load | 5300kg |
| accumulator | voktage/capacity | 12/80V/Ah |
| engine | model | Xichai/ /Cummins/Isuzu/Mitsubishi |
| rated power | 45kw | |
| rated torque | 186/1700-1900Nm/r.p.m | |
| Bore X Stroke | 98×105mm | |
| number of cylinders | 4 | |
| displacement | 3.168L | |
| fuel tank capacity | 70L | |
| Driving Method | mechanical drive | |
| gear(front/rear) | 2/2 | |
