Product classification
Product classification
● Category:

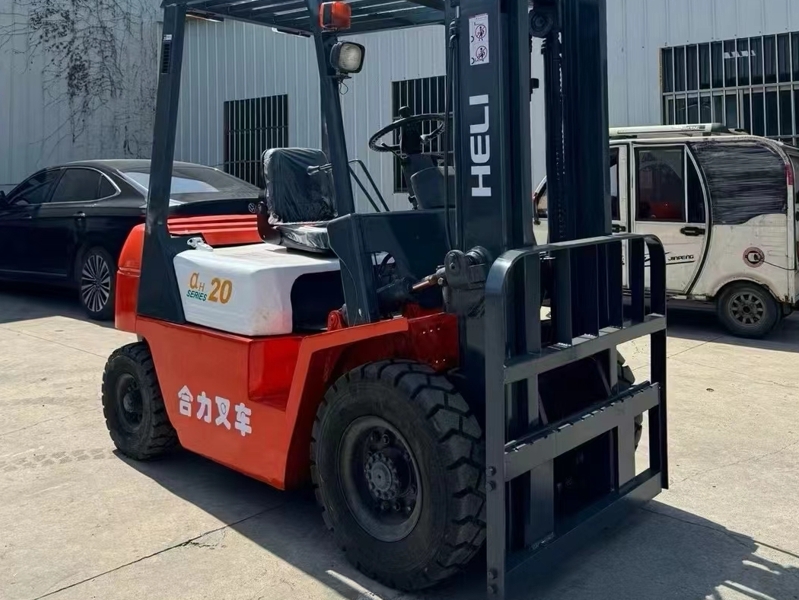

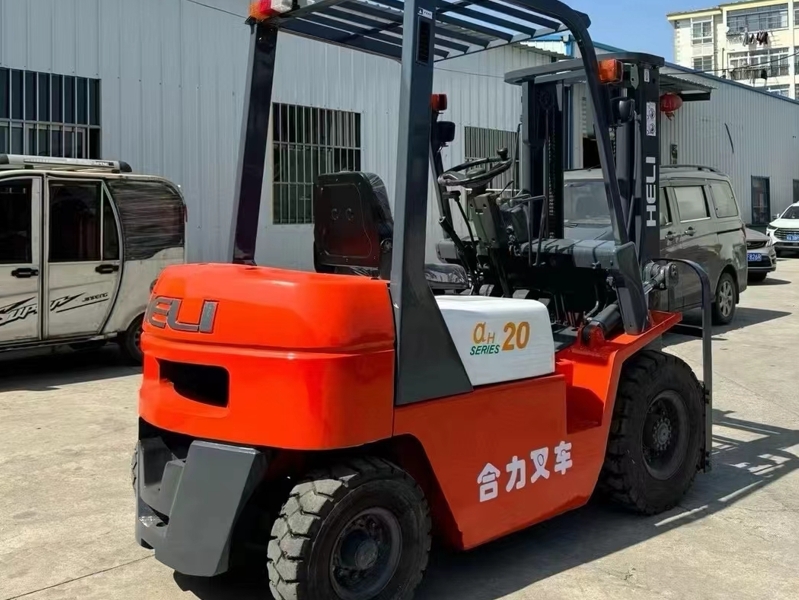

● Brand Name: Forklift
● Dimension (mm): 3780*1230*2070
● Operating Weight (kg): 4030
● Origin: China
| Specification | CPC25 | ||||||
| 1 | Fuel type | Diesel | |||||
| 2 | Load capacity | kg | 2500 | ||||
| 3 | Load center | mm | 500 | ||||
| 4 | Lift height | mm | 3000 | ||||
| 5 | Full free lift height | mm | 100 | ||||
| 6 | Fork dimension | mm | 1070×122×40 | ||||
| 7 | Mast tilting angle | Deg. | 6/12 | ||||
| 8 | Min. turning radius | mm | 2240 | ||||
| 9 | Groud clearance | mm | 120 | ||||
| 10 | Overhead guard height | mm | 2140 | ||||
| 11 | Front overhang | mm | 485 | ||||
| 12 | Max. travel speed(Full load) | km/h | 19 | ||||
| 13 | Max. lift speed(Full load) | mm/s | 550 | ||||
| 14 | Max. traction power | KN | 12.3 | ||||
| 15 | Max. gradeability | % | 20 | ||||
| 16 | Total length with fork | mm | 3610 | ||||
| 17 | Total length without fork | mm | 2540 | ||||
| 18 | Total width | mm | 1160 | ||||
| 19 | Mast extended height | mm | 4220 | ||||
| 20 | Mast lowered height | mm | 2060 | ||||
| 21 | Front Tire | 7.00-12-12PR | |||||
| 22 | Rear Tire | 6.00-9-10PR | |||||
| 23 | Wheelbase | mm | 1600 | ||||
| 24 | Tread(Front/Rear) | mm | 970/970 | ||||
| 25 | Service weight | Kg | 4030 | ||||
| 26 | Battery | V/Ah | 12/80 | ||||
| 27 | Engine Type | XINCHAI 4D27G31 | |||||
| 28 | Power | kw/r.p.m | 36.8 | ||||
| 29 | Transmission | Mechanical/Hydraulic | |||||
| 30 | Operating pressure | Mpa | 18.5 | ||||
