brand

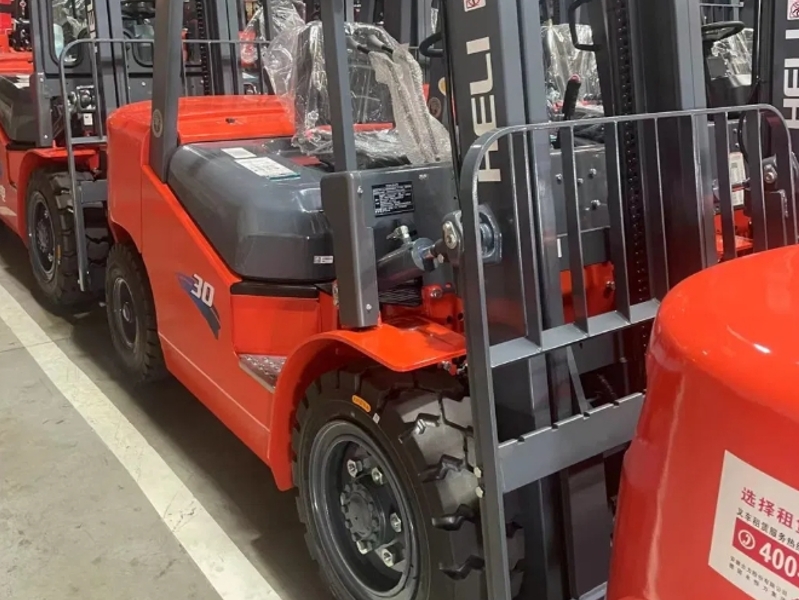

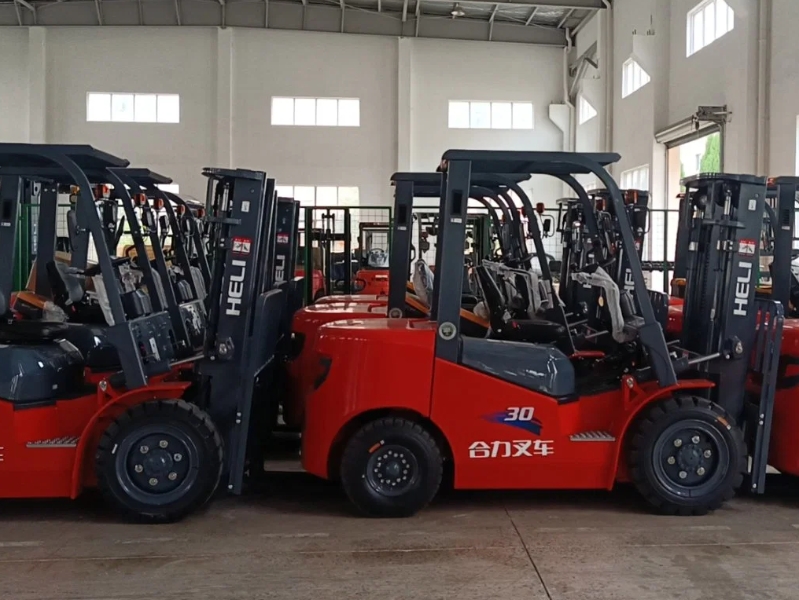

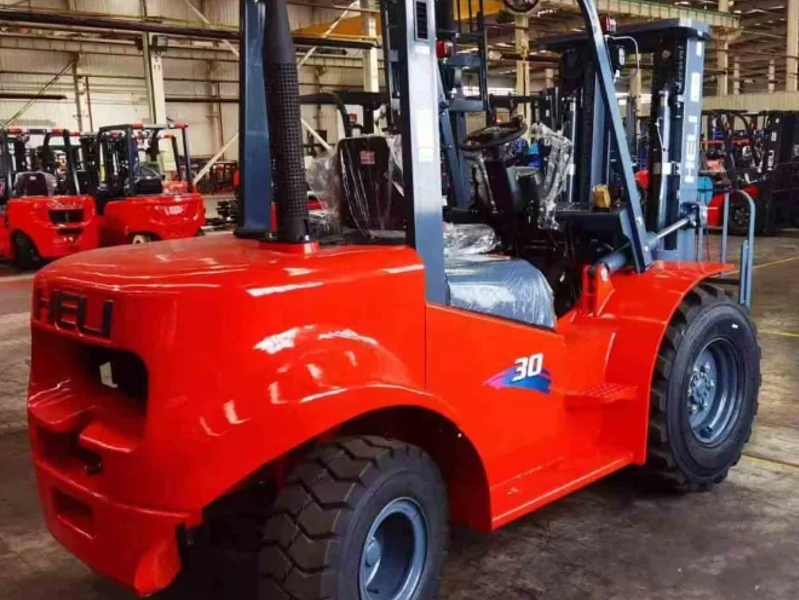

HELI

model

CPCD30

rated capacity

3000kg

load center distance

500mm

power type

diesel

driving mode

sit

lifting height(standard)

3000mm

mast full height(Forks on the ground, gantry vertical)

2070mm

Maximum fork lifting height (with block shelf)

4217mm

Free lifting height

155mm

Overall height(with overhead guard)

2140mm

Minimum ground clearance (at gantry)

135mm

Distance from seat surface to roof rack

1050mm

Traction pin height

310mm

Rack height

1182mm

Overall length(with/without fork)

3862/2792mm

wheel base

1750mm

front overhang

478mm

rear overhang

564mm

overall width

1225mm

Distance between left and right wheels (front/rear)

1000/970mm

Fork Adjustment Range (Outside Forks) (Max/Min)

1060/250mm

Minimum outside turning radius

2400mm

Minimum inside turning radius

80mm

Mast inclination(front/rear)

6°/12°

fork size

1070*125*45mm

machine weight

4270mm

wheels number

2X/2

wheels type

pneumatic tire
